Fiber Optic Communication & Security Infrastructure
Florida, USA
Project Overview
This project documents the design and installation of an underground single-mode fiber optic communication system connecting multiple buildings and structures across the WSA commercial campus. The system delivers high-bandwidth backbone connectivity, security camera coverage, and integrated access control to all key facility areas.
24-strand single-mode fiber optic cable was routed through 2-inch PVC underground conduit with multi-tube innerduct, pulled through concrete-set pull boxes at strategic intervals. At each building endpoint, fiber termination panels with SC-type connectors provide structured cross-connect points. Fiber-to-Ethernet media converters at each node enable PoE-powered IP surveillance cameras and card reader-based door access control. Riser diagrams and control/security system diagrams document the full communications and security architecture.
Technical Scope
- ✓24-strand single-mode fiber optic cable routing — site layout
- ✓2-inch underground PVC conduit with multi-tube innerduct
- ✓Pull box placement and concrete-encased conduit runs
- ✓Fiber termination panels with SC-type connectors at each node
- ✓Fiber-to-Ethernet media converters for network integration
- ✓PoE-powered IP surveillance camera system
- ✓Card reader-based door access control integration
- ✓Fiber optic riser diagram — vertical distribution overview
- ✓Communication and security system one-line diagram
- ✓Control and security system schematic
Project Details
- Category
- Communication & Security Infrastructure
- Cable Type
- 24-strand single-mode fiber optic
- Conduit
- 2-inch PVC underground with innerduct
- Systems Served
- Network, PoE cameras, access control
- Location
- Florida, USA
Layout & System Diagrams
Fiber Optic Route – Site Layout

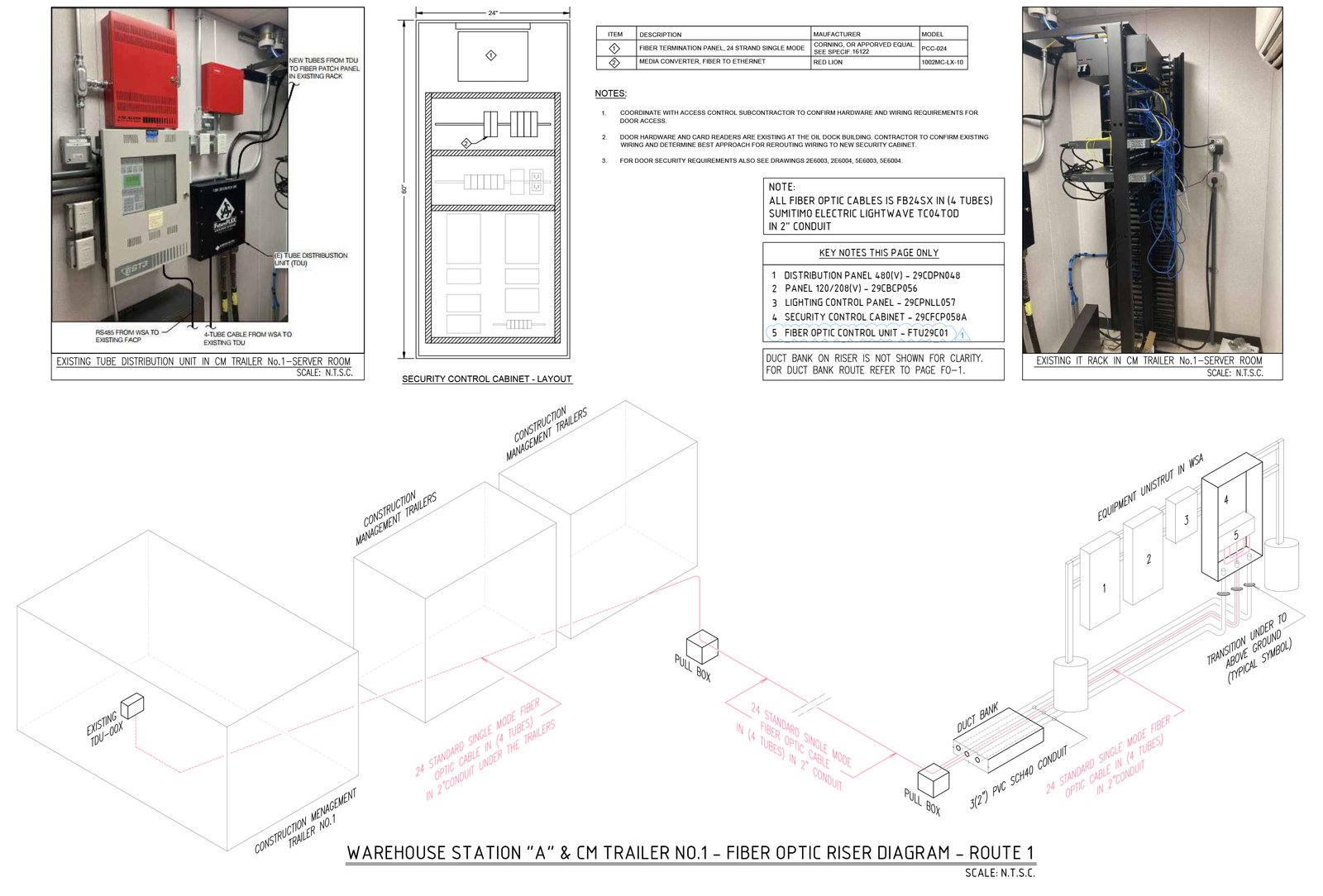

Fiber Optic Riser Diagram

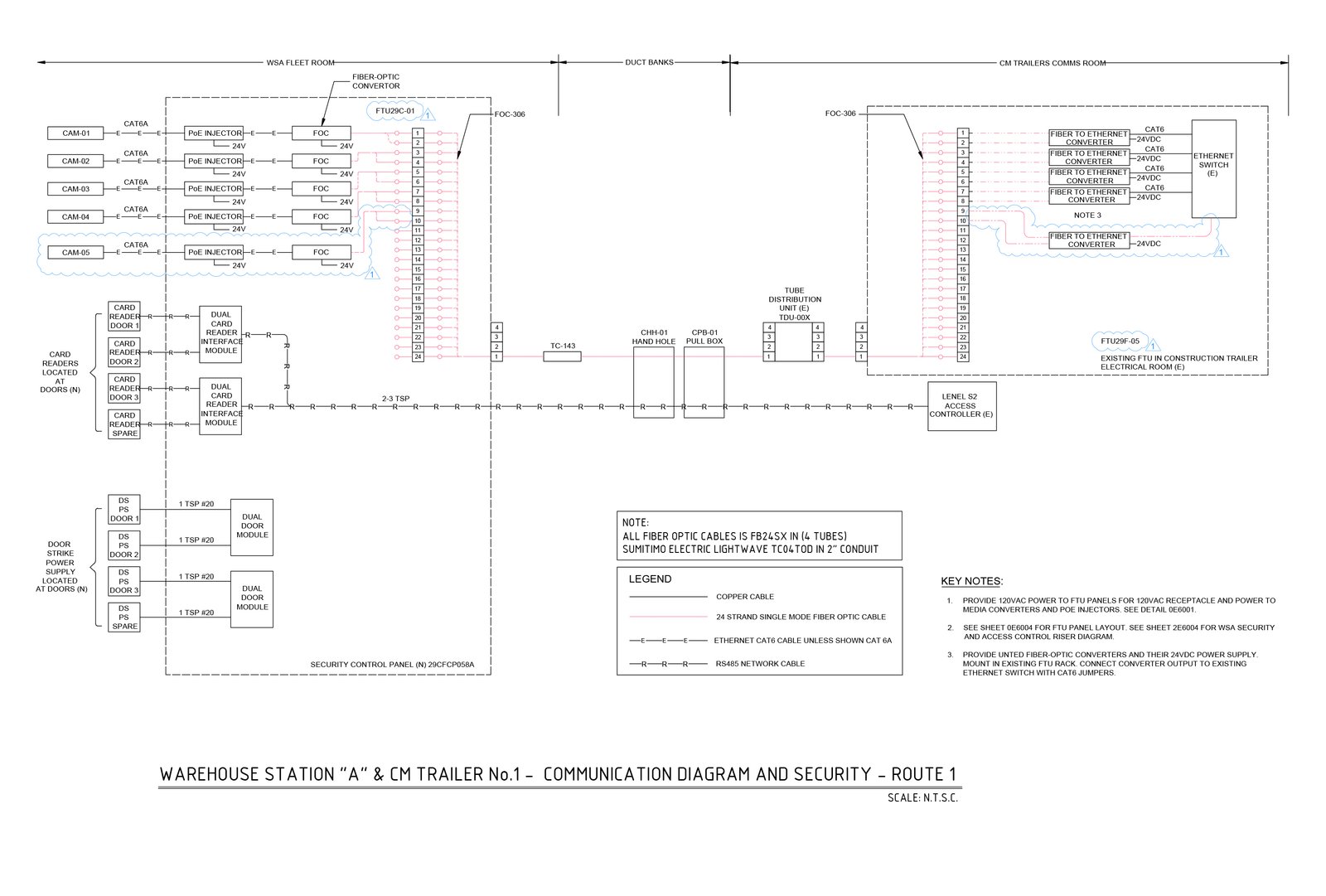

Communication & Security Diagram

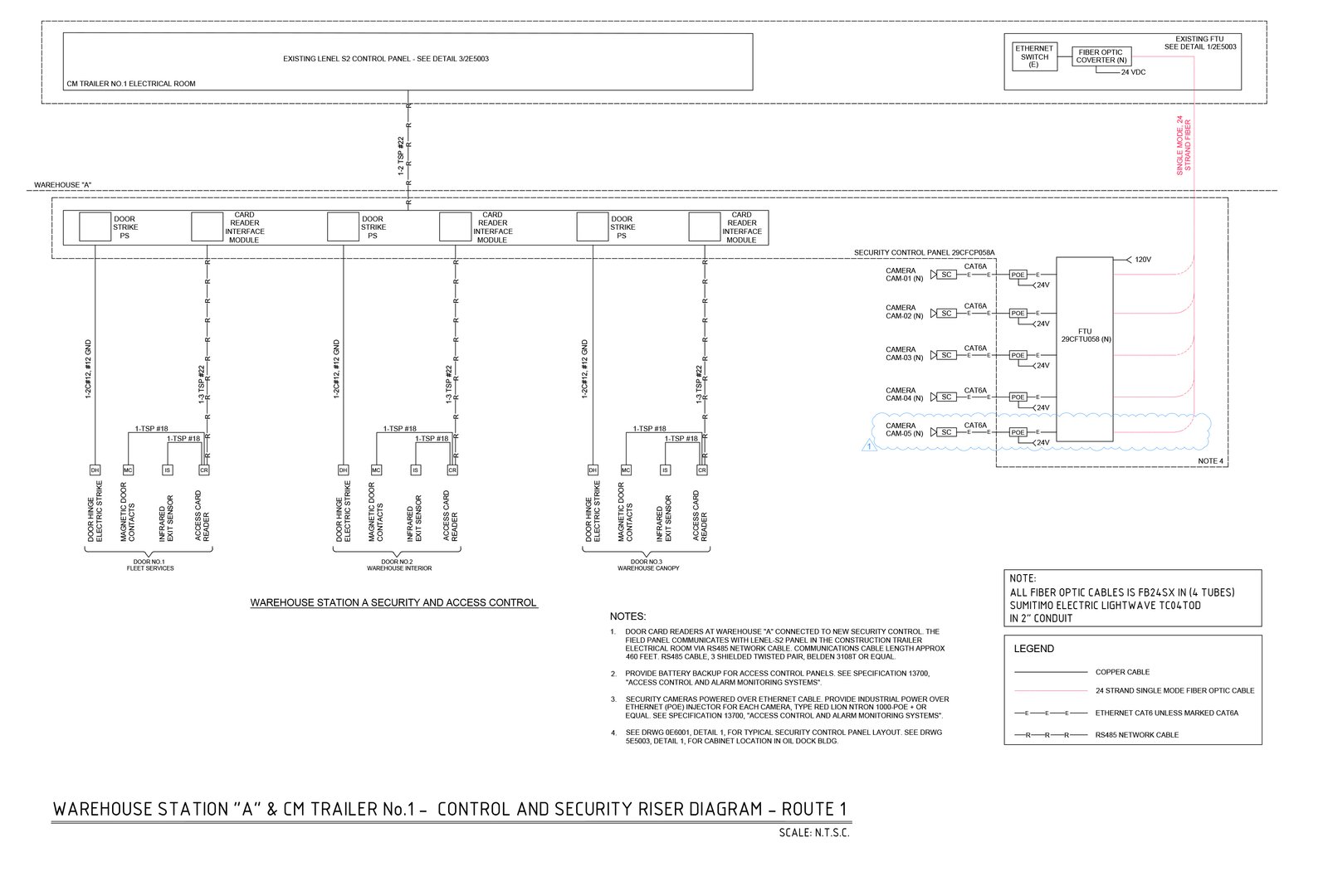

Control & Security Diagram
